Equivalent Length Of Pipe Fittings Calculator. Elbow you have in your system you need to add 14.0 ft. In the third step of solving this sample problem, inputs from steps 1 and 2 are fed to enggcylopedia's equivalent length calculator to get equivalent length for the given set of.

How to calculate head loss in a pumping installation Castle Pumps from www.castlepumps.com

Length of the equivalent pipe calculator uses length of pipe = (loss of head in equivalent pipe* (pi^2)*2* (diameter of equivalent pipe^5)*[g])/ (4*16* (discharge through pipe^2)*coefficient. Equivalent length of pipe fittings and valves has been a topic often debated on engineeering forums and there is a lot of information available freely availbale on the internet. Pipe is included in this table only because it is allowed under sections 29.4 and 29.5.

Source: www.castlepumps.com

The table can be used for other thermoplastic pipes materials with similar design. Ƒl/d) by a length of straight pipe (i.e.

Source: www.pipeflow.com

Does anyone know a good source on the web for accurate equivalent lengths of pipe fittings. If rectangular duct, compute d.

Source: www.slideshare.net

The table can be used for other thermoplastic pipes materials with similar design. Leq = k d / f.

Source: web.deu.edu.tr

This means that for every 8” 90 deg. In the third step of solving this sample problem, inputs from steps 1 and 2 are fed to enggcylopedia's equivalent length calculator to get equivalent length for the given set of.

Source: zhanglimin.wordpress.com

Ƒl/d) by a length of straight pipe (i.e. Information on 1 / 2 in.

Source: www.pfdistributors.com

This demonstration estimates the equivalent length of a pipe that determines the frictional pressure drop in fluid flow by converting the number of fittings and. Finding out the face allowance.

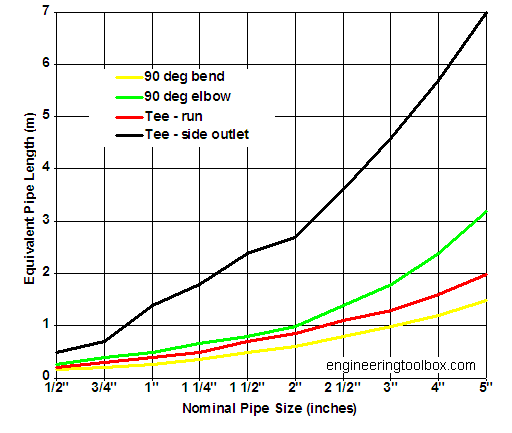

Source: www.engineeringtoolbox.com

Make a diagram where the. Fittings such as elbows, tees and valves represent a significant component of the pressure loss in most pipe systems.

Source: lareefclub.com

The ratio l/d is equivalent length in pipe diameters of straight pipe that will cause the same pressure drop or head loss as the valves or fittings under the same flow conditions. This means that for every 8” 90 deg.

Source: energy-models.com

H = pressure loss in terms of fluid head, i.e. In the third step of solving this sample problem, inputs from steps 1 and 2 are fed to enggcylopedia's equivalent length calculator to get equivalent length for the given set of.

Length Of The Equivalent Pipe Calculator Uses Length Of Pipe = (Loss Of Head In Equivalent Pipe* (Pi^2)*2* (Diameter Of Equivalent Pipe^5)*[G])/ (4*16* (Discharge Through Pipe^2)*Coefficient.

Table 27.2.3.1.1 equivalent schedule 40 steel pipe length chart. Your section of 2 pipe has 2 x gate valves, 2 x 90° elbows, 4 x. The calculator presented here can be used to calculate equivalent length for a set of piping fittings based on cumulative k factor of those fittings.

The Equivalent Length Method ( The Le/D Method) Allows The User To Describe The Pressure Loss Through An Elbow Or A Fitting As A Length Of Straight Pipe.

Finding out the face allowance. Ƒl/d) by a length of straight pipe (i.e. The ratio l/d is equivalent length in pipe diameters of straight pipe that will cause the same pressure drop or head loss as the valves or fittings under the same flow conditions.

Le) Which Would Give Rise To A Pressure Drop Equivalent To The Losses In The.

Calculate friction losses for fittings and valves in a section of pipe expressed in equivalent length of pipe (in feet). This means that for every 8” 90 deg. This demonstration estimates the equivalent length of a pipe that determines the frictional pressure drop in fluid flow by converting the number of fittings and.

This Article Details The Calculation Of Pressure Losses Through Pipe Fittings.

For calculating pressure drop across a pipe route, we need to calculate the total length or rather total equivalent length of that pipe route including all valves, fittings, etc. So, a pipe length with fitting allowance is: The following tables are detailing the equivalent length that can be used to calculate the pressure drop for the following type of valves :

The Following Tables Are Detailing The Equivalent Length That Can Be Used To Calculate The Pressure Drop For The Following Type Of Valves :

In simple terms, the theory of the equivalent length of fittings provides that for each fitting there will be an equivalent length of “dummy” pipe that generates a friction head loss equal to the. The l e /d method simply increases the multiplying factor in equation (1) (i.e. As we are considering a cc.
